Design-A-Flange Frame FL13 RAL 9005

Material Fiberglass re-inforced Polypropylene and TPE - UL listed material
Temperature range -20ºC....+125ºC (1)
Protection class IP65
Test standard EN IEC 60670-1:2021 + A11
Semko report SE-S-2300073
Tariff No. 3926909790
UNSPSC Code 39121300
Halogen-Free

(1) Unstressed material.

Measurements & Variants

Information

Downloads
  • ”Free placement” of openings
  • Interchangeable inserts. Possible to change configuration later on.
  • KLIKSEAL® or cable gland installation in the flange.
  • ”Pop-out” membranes.
  • IP65 (Integrated sealing)
Black RAL 9005

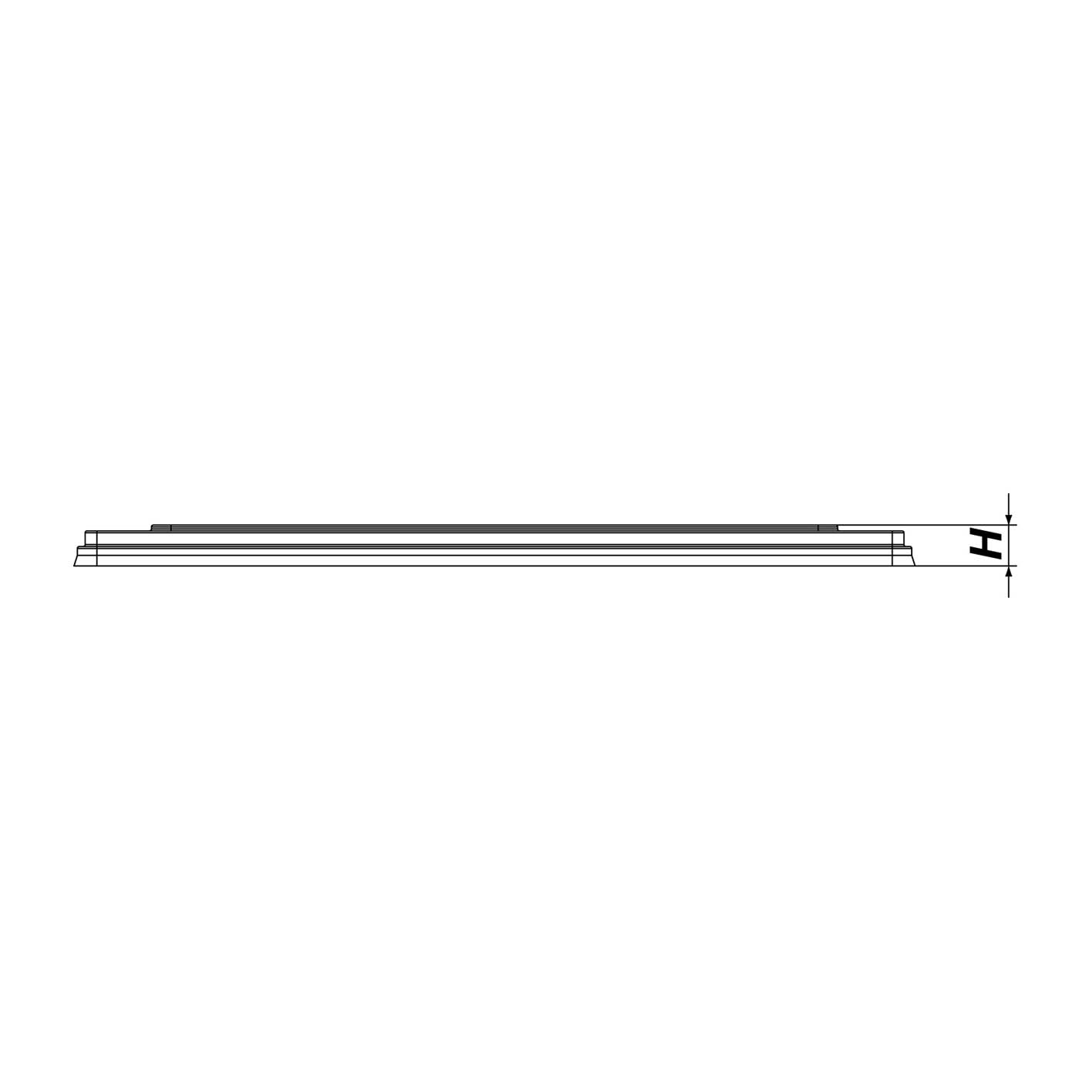

E-number Article no. Size L1 mm L2 mm H mm Pcs/pack
2665422 FL13 FRAME B FL13 134 52 6,5 10
