Prefabricated D-A-F Flanges, size FL21

A list of our prefabricated D-A-F flanges
Size FL21

Change to size FL13

I want to see the D-A-F standards and measurements



Configurations FL21



Configuration article no

Inserts article no



Cable span



T_26 654 01

T_26 654 13 x2
T_26 654 12
T_26 654 06



20x 4-10mm
2x 6-13mm
2x 5-10mm, 2x 8-17mm

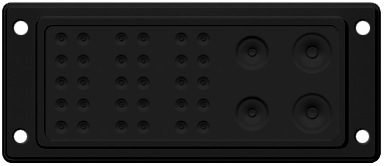

Config1

T_26 654 19

T_26 654 31 x2
T_26 654 30
T_266 54 24



20x 4-10mm
2x 6-13mm
2x 5-10mm, 2x 8-17mm

T_2665419

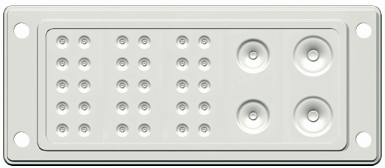

T_26 654 02

T_26 654 13 x3
T_26 654 12
T_26 654 11



30x 4-10mm
2x 6-13mm
2x 8-17mm

Config2

T_26 654 20

T_26 654 31 x3
T_26 654 30
T_26 654 29



30x 4-10mm
2x 6-13mm
2x 8-17mm

T_2665420

T_26 654 03

T_26 654 13
T_26 654 08 x2



10x 4-10mm
18x 7-14mm

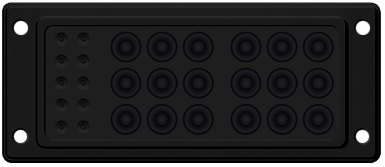

Config3

T_26 654 21

T_26 654 31
T_26 654 26 x2



10x 4-10mm
18x 7-14mm

T_2665421

T_FL21 Config 4 Grey

T_26 654 13 x2
T_26 654 06
T_26 654 12



20 x 4-10mm
2 x 5-10mm, 2 x 8-17mm
2 x 6-13mm

Config4

T_FL21 Config 5 Grey

T_26 654 13
T_26 654 06
T_26 654 08




2 x 5-10mm, 2 x 8-17mm
9  x 7-14mm
10 x 4-10mm

Config5

T_FL21 Config 6 Grey

T_26 654 12
T_26 654 06
T_26 654 07



2 x 6-13mm
2 x 5-10mm, 2 x 8-17mm
KO M32 M40 M50

Config6

T_FL21 Config 7 Grey

T_26 654 12 x3
T_26 654 07



6 x 6-13mm
KO M32 M40 M50

Config7

T_FL21 Config 8 Grey

T_26 654 06 x2
T_26 654 12



4 x 5-10mm, 4 x 8-17mm
2 x 6-13mm

Config8

T_FL21 Config 9 Grey

T_26 654 12 x3
T_26 654 06
T_26 654 X



6 x 6-13mm
2 x 5-10mm, 2 x 8-17mm

FL21 KONFIG 9

TT_FL21 Config 10 Grey

T_26 654 12
T_26 654 07 x2



2 x 6-13mm
KO M32 M40 M50

FL21 KONFIG 10

T_FL21 Config 11 Grey

T_26 654 11
T_26 654 08
T_26 654 13 x2



2 x 8-17mm
9 x 7-14mm
20 x 4-10mm

FL21 KONFIG 11

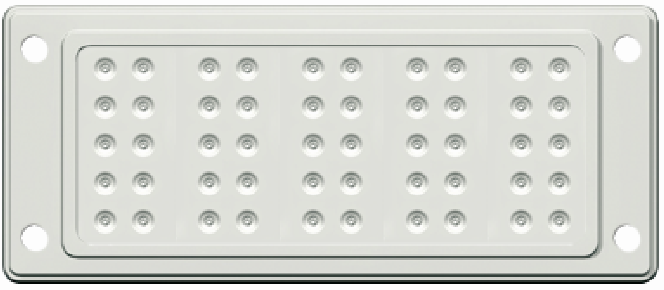

T_FL21 Config 12 Grey

T_26 654 13 x5



50 x 4-10mm

FL21 KONFIG 12

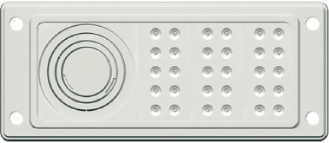

T_FL21 Config 13 Grey

T_26 654 07
T_26 654 13



KO M32 M40 M50
30 x 4-10mm

FL21 KONFIG 13

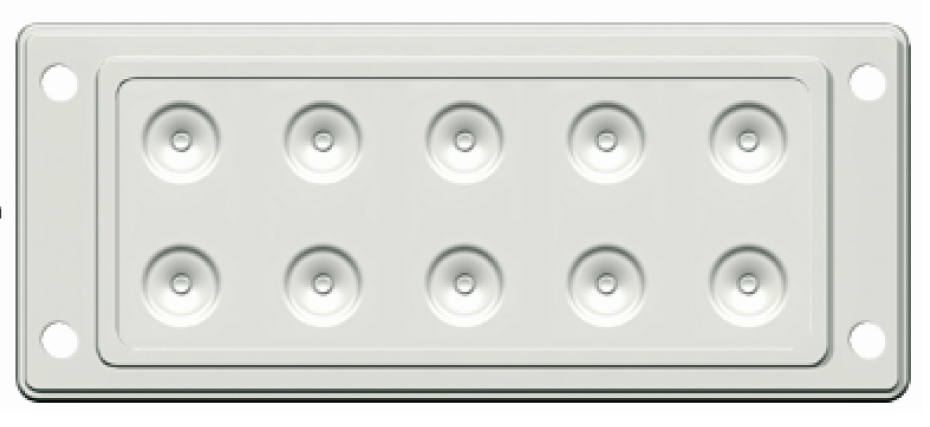

T_FL21 Config 14 Grey

T_26 654 12 x5



10 x 6-13mm

FL21 KONFIG 14

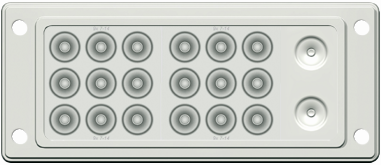

T_FL21 Config 15 Grey

T_26 654 11
T_26 654 08 x2



2 x 8-17mm
18 x 7-14mm

FL21 KONFIG 15

T_FL21 Config 16 Grey

T_26 654 09
T_26 654 11
T_26 654 08



2 x 10-20mm, 2 x 20-30mm
2 x 8-17mm
9 x 7-14mm

Config16

T_FL21 Config 17 Grey

T_26 654 08 x2
T_26 654 12



18 x 7-14mm
2 x 6-13mm

Config17

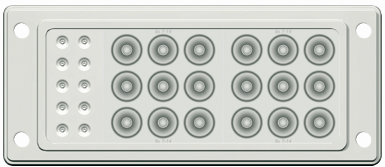

T_FL21 Config 19 Grey

T_26 654 08 x2
T_26 654 13



18 x 7-14mm
10 x 4-10mm

Config19

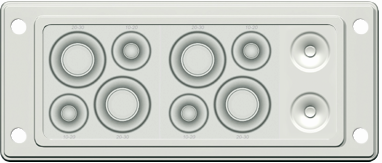

T_FL21 Config 20 Grey

T_26 654 09 x2
T_26 654 11



4 x 10-20mm, 4 x 20-30mm
2 x 8-17mm

Config20

T_FL21 Config 21 Grey

T_26 654 09
T_26 654 07
T_26 654 13



2 x 10-20mm, 2 x 20-30mm
KO M32 M40 M50
10 x 4-10mm

Config21

T_FL21 Config 22 Grey

T_26 654 08
T_26 654 13 x3



9 x 7-14mm
30 x 4-10mm

T_FL21 Config22-grey

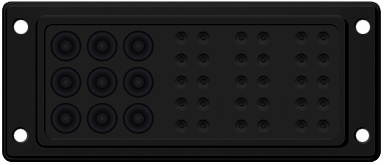

T_FL21 Config 22 Black

T_26 654 26
T_26 654 31 x3



9 x 7-14mm
30 x 4-10mm

Config22

T_FL21 Config 23 Grey

T_26 654 07
T_26 654 11
T_26 654 06



KO M32 M40 M50
2 x 8-17mm
2 x 5-10mm, 2 x 8-17mm

T_FL21 Config23-grey

T_FL21 Config 23 Black

T_26 654 25
T_26 654 29
T_26 654 24



KO M32 M40 M50
2 x 8-17mm
2 x 5-10mm, 2 x 8-17mm

Config23

T_FL21 Config 24 Grey

T_26 654 13 x4
T_26 654 11




40 x 4-10mm
2 x 8-17mm


config 24
